Dingli BA12NE – 11.8m Electric Boom Lift
Dingli BA12NE – 11.8m Electric Boom Lift
Make an enquiry
Machine information

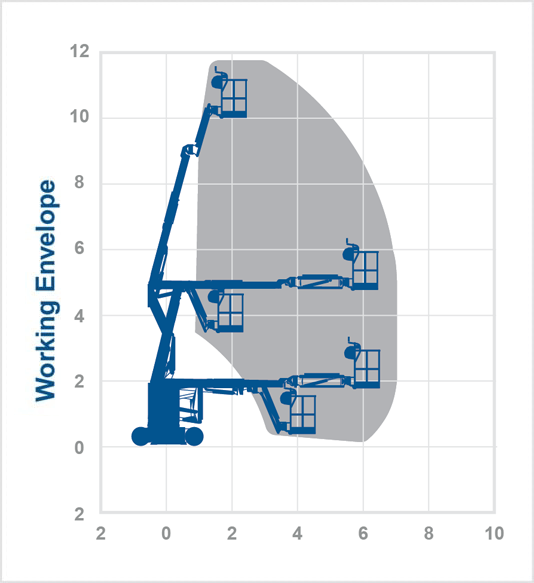

The Dingli BA12NE is an electric powered articulated boom lift with a 11.8m working height and a horizontal outreach of 6.5m.
The BA12NE provides 355º rotation, non-marking tyres, supports a safe working load of up to 227kg and can accommodate two operators simultaneously in the basket. The BA12NE is equipped with an articulating boom that enables up-and-over access and it features power to platform.
For increased safety when working at height, the BA12NE is fitted with the manufacturer’s own secondary guarding system.
Standard features
Battery powered
Maintenance-free batteries
Non-marking tyres
Articulating boom
Maximum 2 people on platform
Suitable for indoor and outdoor use
IPAF 3b licence type
Power to platform
1.2m wide
Zero tail swing
Optional extras
SkySentry
OEM secondary guarding
Operator information
To operate this machine, operators are legally required to complete an accredited IPAF training course to gain the knowledge and skills needed to operate the machine safely in line with legislation and safe industry practices.
IPAF 3A/3B Mobile Vertical/Mobile Boom Operator Course
IPAF 3A/3B/1B Mobile Vertical/Mobile Boom/Static Boom Operator Course
Full specification
| Working height | 11.8m |
| Outreach | 6.5m |
| Safe working load | 227kg |
| Weight | 7,080kg |
| Closed width | 1.2m |
| Closed height | 2.29m |
| Rotation | 355º |
| Non-marking tyres | Yes |
| Indoor use | Yes |
| Outdoor use | Yes |
| Ground condition | Finished |
| Platform/deck size | 1.17m x 0.76m |
| Closed length | 3.89m |
| Boom type | Articulated |
| Power | Electric |
| Manufacturer | Dingli |
