Machine information

The Manitou MT1033 – 9.98m Telehandler boasts a lifting height of 9.98m, an impressive maximum lift capacity of 3,300kg at minimum reach and a maximum lift capacity of 1,000kg at full reach with lowered stabilisers. The MT1033 is a compact and robust machine with a spacious cab, exceptional visibility and is both easy to use and maintain. It’s low fuel consumption and rough terrain capabilities make the MT1033 the perfect choice for a wide range of applications, including masonry, roofing, and construction.

Standard features

• Diesel powered
• Stage V low emission engine
• Rough terrain 4-wheel drive
• Green beacon to identify that operator is wearing a seat belt

Optional extras

• Bucket
• Fork lifting hook
• Fork extension
• Telematics or SkySentry

Operator information

All operators of this machine must successfully complete specialist telehandler training before operating. This ensures operators have the skills and knowledge to operate the machine safely in line with legislation and safe industry practices.


Full specification

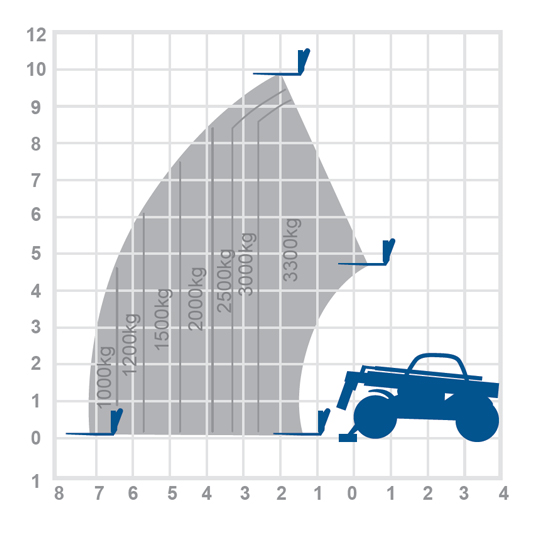

Max lift height	9.98m
Max forward reach	7.15m
Overall length	4.93m
Overall height	2.30m
Overall width	2.33m
Maximum capacity	3300kg
Maximum lift capacity (full reach)	1,000kg
Weight (with fork)	7,790kg
Outside turn radius	3.80m
Manufacturer	Manitou
Manufacturer code	MT 1033 Easy

Related guides & downloads

PDF: 567kB MT1033.pdf
