LGMG SR1023D – 12m Diesel Scissor Lift
LGMG SR1023D – 12m Diesel Scissor Lift
Make an enquiry
Machine information

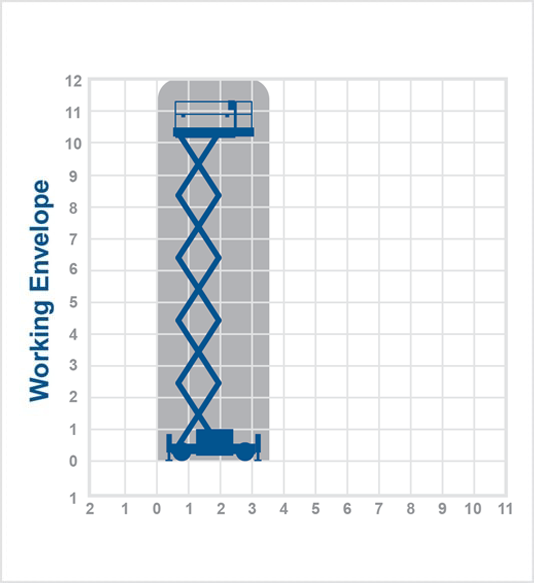

The LGMG SR1023D is a diesel-powered scissor lift that can reach a maximum working height of 12 metres.
It is equipped with an extendable platform reaching up to 7.4 metres and offers a substantial safe working load of 1,100 kg, supporting seven operators at the same time. Engineered for challenging outdoor environments, the SR1023D features rough terrain capability and four-wheel drive to ensure enhanced stability and performance on demanding worksites.
Standard features
Diesel powered
Rough terrain 4-wheel drive
Outrigger legs
Maximum of 7 people on platform
Suitable for outdoor use
IPAF 3a licence type
Generator supplying 110v power in the platform
Optional extras
SkySentry
Operator information
You must successfully complete the following courses to ensure you have the proper training to operate this machinery.
IPAF 3A and 3B Operator Training Course
IPAF 3A/3B/1B Mobile Vertical/Mobile Boom/Static Boom Operator Course
Full specification
| Working height | 12m |
| Safe working load | 1,100kg |
| Platform/deck size | 3.98m x 1.83m |
| Closed width | 2.3m |
| Closed height | 2.74m |
| Non-marking tyres | No |
| Indoor use | No |
| Outdoor use | Yes |
| Ground condition | 4 x 4 |
| Outrigger legs | Yes |
| Weight | 6,980kg |
| Closed length | 4.9m |
| Power | Diesel power |
| Manufacturer | LGMG |
| Manufacturer code | SR1023D |
