Dingli 2223RTB - 22.0m Diesel Scissor Lift


Dingli 2223RTB - 22.0m Diesel Scissor Lift


Make an enquiry

Or, call our service team
0345 745 0000

Machine information

With a maximum loading capacity of 750kg, the Dingli 2223RTB - 22.0m Diesel Scissor Lift can operate normally even when at full working load capacity and at full height.

The machine offers a 4.59 by 2.25m working platform and a one-key extension platform that can reach up to 2.7m and stop at any point required.

The Dingli 2223RTB - 22.0m Diesel Scissor Lift boasts a ground clearance of up to 0.4m. The 4x4 drive and steer offers a turning radius of 1.25/3.4m meaning the machine can steer in narrow spaces.

With a gradeability of 40%, the machine is equipped with a special sealed hydraulic drive system. The Dingli 2223RTB - 22.0m Diesel Scissor Lift is driveable at full height and offers a one-key levelling function and automatic levelling which is safe and stable.

Standard features

Diesel powered

Rough terrain (4 wheeled drive)

3A IPAF license type

Indoor and outdoor

Outrigger legs

Maximum of 4 people in cage

Power to platform

Optional extras




Operator information

For safe operating practices, you are required to have successfully completed the following training courses.

IPAF 3A and 3B Operator Training Course

IPAF 3A/3B/1B Mobile Vertical/Mobile Boom/Static Boom Operator Course 

Full specification

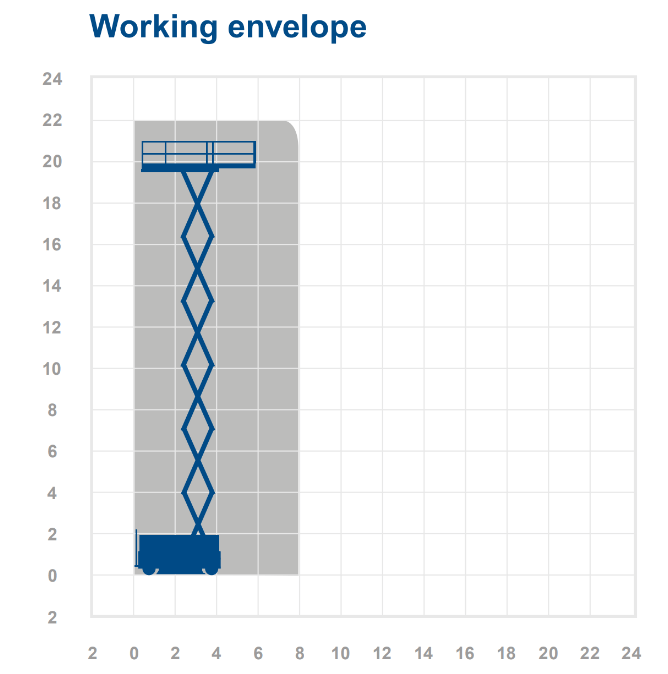

Working height 22.0m
Safe working load 750kg
Platform/deck size 4.59m x 2.25m
Closed width 2.46m
Closed height 3.86m
Stowed height (guardrails lowered) 3.00m
Outreach 0
Non-marking tyres No
Indoor use Yes
Outdoor use Yes
Ground condition 4x4
Weight 13,000kg
Closed length 4.95m
Power Diesel
Manufacturer Dingli
Manufacturer code 2223RTB

Related guides & downloads

PDF: 2,370kB 2223RTB-(1).pdf
PDF: 2,370kB 2223RTB.pdf
