Dingli 2223DC – 22m Electric Scissor Lift
Dingli 2223DC – 22m Electric Scissor Lift
Make an enquiry
Machine information

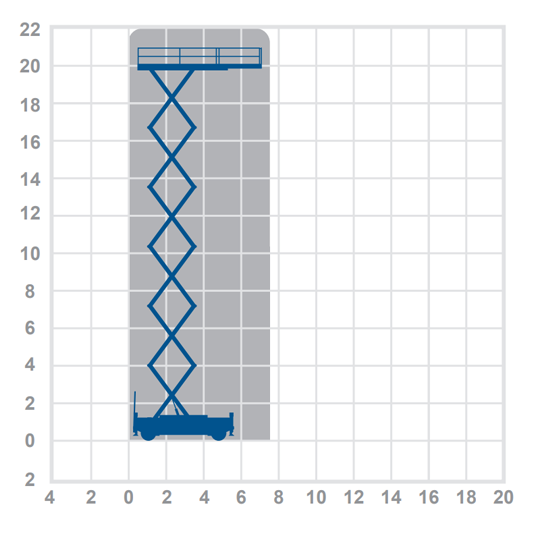

With its lofty working height of 22m, impressive safe working load of 750kg and low-noise, zero-emission battery powered operation, the Dingli 2223DC electric scissor lift is a powerful solution that enables you to get the job done without compromising on environmental standards.
The 2223DC is designed to lift heavy materials and can accommodate up to 4 people in the basket at one time. Additionally, it offers an extending deck which can reach up to 7.29m, providing plenty of space to store tools and materials or for your team to work, enabling you to maximise efficiency whilst on the job.
The 2223DC boasts non-marking tyres, automatic levelling outriggers, is wind rated and even features rough terrain capability, making it an ideal option for completing work at height both indoors and outdoors.
Suitable applications for this scissor lift include cleaning, facilities management, infrastructure, mechanical and electrical, ductwork and warehousing.
Standard features
Battery powered
Rough Terrain (4 wheel drive)
Low emissions
Low noise
IPAF 3a licence type
Maximum 4 people on platform
Suitable for indoor and outdoor use
Non-marking tyres
Outrigger legs
Optional extras
SkySentry
Operator information
Before operating this equipment, you are required to have successfully completed the following courses to ensure safe operator practice.
IPAF 3A and 3B Operator Training Course
IPAF 3A/3B/1B Mobile Vertical/Mobile Boom/Static Boom Operator Course
Full specification
| Working height | 22.0m |
| Safe working load | 750kg |
| Platform/deck size | 4.59m x 2.25m |
| Closed width | 2.46m |
| Closed height | 3.86m |
| Stowed height (guardrails lowered) | 3.0m |
| Outreach | 0 |
| Non-marking tyres | Yes |
| Indoor use | Yes |
| Outdoor use | Yes |
| Ground condition | Finished |
| Weight | 14,100kg |
| Closed length | 4.95m |
| Power | Battery power |
| Manufacturer | Dingli |
| Manufacturer code | 2223DC |
