Dingli 1212PA - 12m electric scissor lift
Dingli 1212PA - 12m electric scissor lift
Make an enquiry
Machine information
The Dingli 1212PA 12m electric scissor lift is suited for use on both indoor and outdoor jobs, including facilities management, warehousing and cold stores. It provides a maximum working height of 12m and a safe working load of 320kg. The lift features power to platform and an extendable platform that extends out to 3.17m for extra reach.
With a closed width of 1.15m and a closed height of 2.53m (which can be reduced to 2.0m by lowering the guardrails), the 1212PA boasts excellent manoeuvrability in confined spaces.
Fitted with non-marking tyres and an electric drive system, the 1212PA operates quietly and without emissions, making it ideal for urban environments. It can also be driven at full height, helping maintain productivity during work. The 1212PA is a low energy consumption machine as the total transmission efficiency of the direct motor drive systems reaches 95%, promoting an energy saving in excess of 30% energy when compared with traditional hydraulic systems.
Additionally, the 1212PA is an oil-free machine, utilising electric actuators rather than hydraulic systems. This eliminates the risk of oil leaks or site contamination, making it an optimal solution for use in sensitive environments.
Standard features
Battery powered
Maintenance-free batteries
Oil-free machine
IPAF 3a licence type
Non-marking tyres
Suitable for indoor and outdoor use
Maximum 2 people on the platform
Power to platform
Drivable at full height
Optional extras
SkySentry
SkySiren PCS for Scissor
Operator information
Prior to utilising this equipment, the operator must successfully complete a certified programme in working at heights, such as:
IPAF 3A/3B Mobile Vertical/Mobile Boom Operator Course
IPAF 3A/3B/1B Mobile Vertical/Mobile Boom/Static Boom Operator Course
Full specification

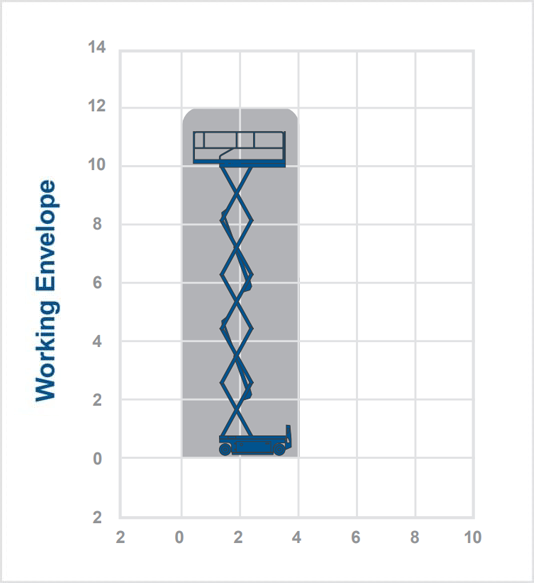

| Working height | 10m |
| Safe working load | 320kg |
| Platform/deck size | 2.27m x 1.12m |
| Closed width | 1.15m |
| Closed height | 2.53m |
| Stowed height (guardrails lowered) | 2m |
| Non-marking tyres | Yes |
| Indoor use | Yes |
| Outdoor use | Yes |
| Ground condition | Finished |
| Weight | 3180kg |
| Closed length | 2.48m |
| Power | Battery power |
| Manufacturer | Dingli |
| Manufacturer code | JCPT1212PA |
