Machine information

The Leonardo HD is the first piece of equipment to get on the job site and the last to leave. The 4.9m low level access platform is easily driven through doorways and tight spaces with its compact size. This compact machine is drivable at full height – 4.9m, fully loaded - 180 kg and with the platform fully extended, at an automatic slow speed of 0,6 km/h. With attachment Solo Gyps fitted as standard greatly simplifies the positioning of panels, saving manpower.



Full specification

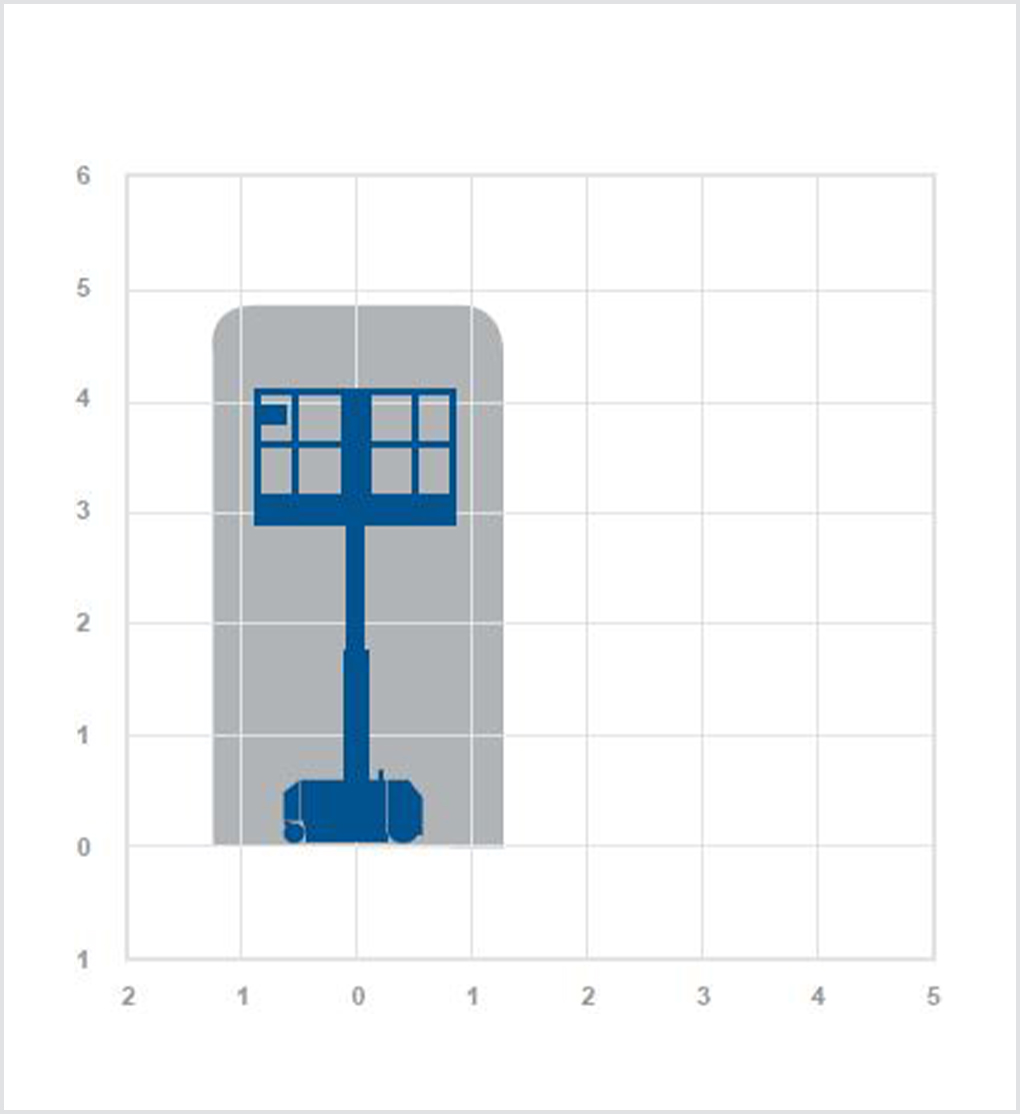

Working height	4.9 m
Safe working load	180 kg
Platform/deck size	1.04 x 0.63 m
Power	Electric
Closed width	0.76 m
Closed height	1.75 m
Outreach	0
Non-marking tyres	Yes
Indoor use	Yes
Outdoor use	Yes
Ground condition	Finished
Weight	555 kg
Closed length	1.04 m
Rotation	N/A
Power	Electric
Manufacturer	Bravi Platforms

Related guides & downloads

PDF: 229kB LUI-HD-WD-2021.pdf
