Dingli BT22RT – 22.51m Diesel Boom Lift
Dingli BT22RT – 22.51m Diesel Boom Lift
Make an enquiry
Machine information

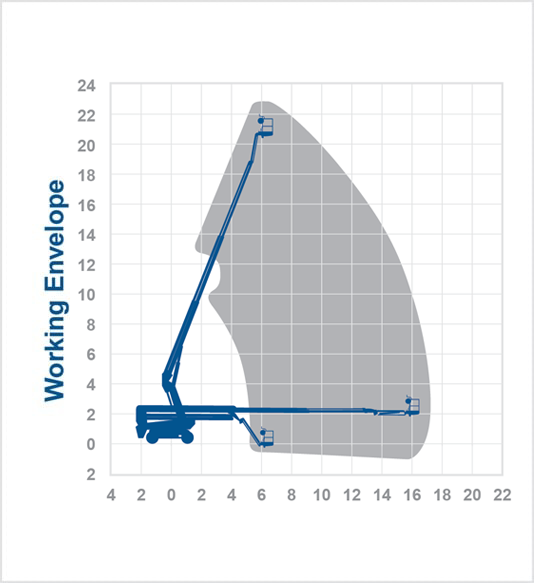

The Dingli BT22RT is a diesel powered straight boom lift with a 22.51m working height and a horizontal outreach of 17.28m.
The BT22RT boasts continuous rotation, a safe working load of 454kg and it can support up to three operators in the basket at one time. Additionally, the BT22RT features a straight boom, rough terrain capability, four-wheel drive and power to platform.
For increased safety when working at height, the BT22RT is fitted with the manufacturer’s own secondary guarding system.
Standard features
Diesel powered
IPAF 3b licence type
Straight boom
Rough terrain (4 wheel drive)
Maximum 3 people on platform
Suitable for outdoor use
Power to platform
Optional extras
SkySentry
Generator
OEM secondary guarding
Operator information
To operate this machine, operators are legally required to complete an accredited IPAF training course to gain the knowledge and skills needed to operate the machine safely in line with legislation and safe industry practices.
IPAF 3A/3B Mobile Vertical/Mobile Boom Operator Course
IPAF 3A/3B/1B Mobile Vertical/Mobile Boom/Static Boom Operator Course
Full specification
| Working height | 22.51m |
| Outreach | 17.28m |
| Safe working load | 454kg |
| Weight | 13,000kg |
| Closed width | 2.50m |
| Closed height | 2.7m |
| Rotation | Continuous |
| Non-marking tyres | No |
| Indoor use | No |
| Outdoor use | Yes |
| Ground condition | 4 x 4 |
| Platform/deck size | 2.44m x 0.91m |
| Closed length | 9.82m |
| Boom type | Telescopic |
| Power | Diesel |
| Manufacturer | Dingli |
