Machine information

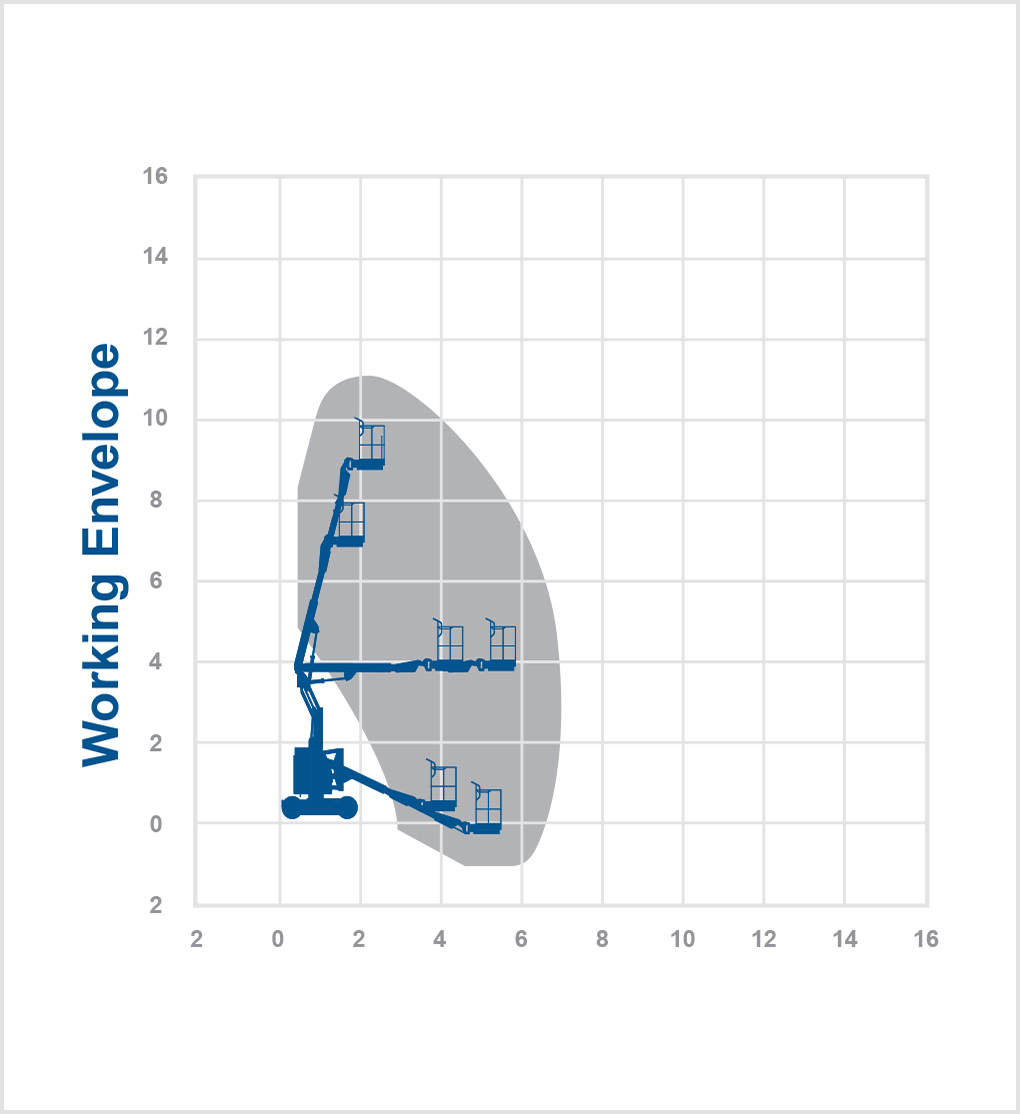

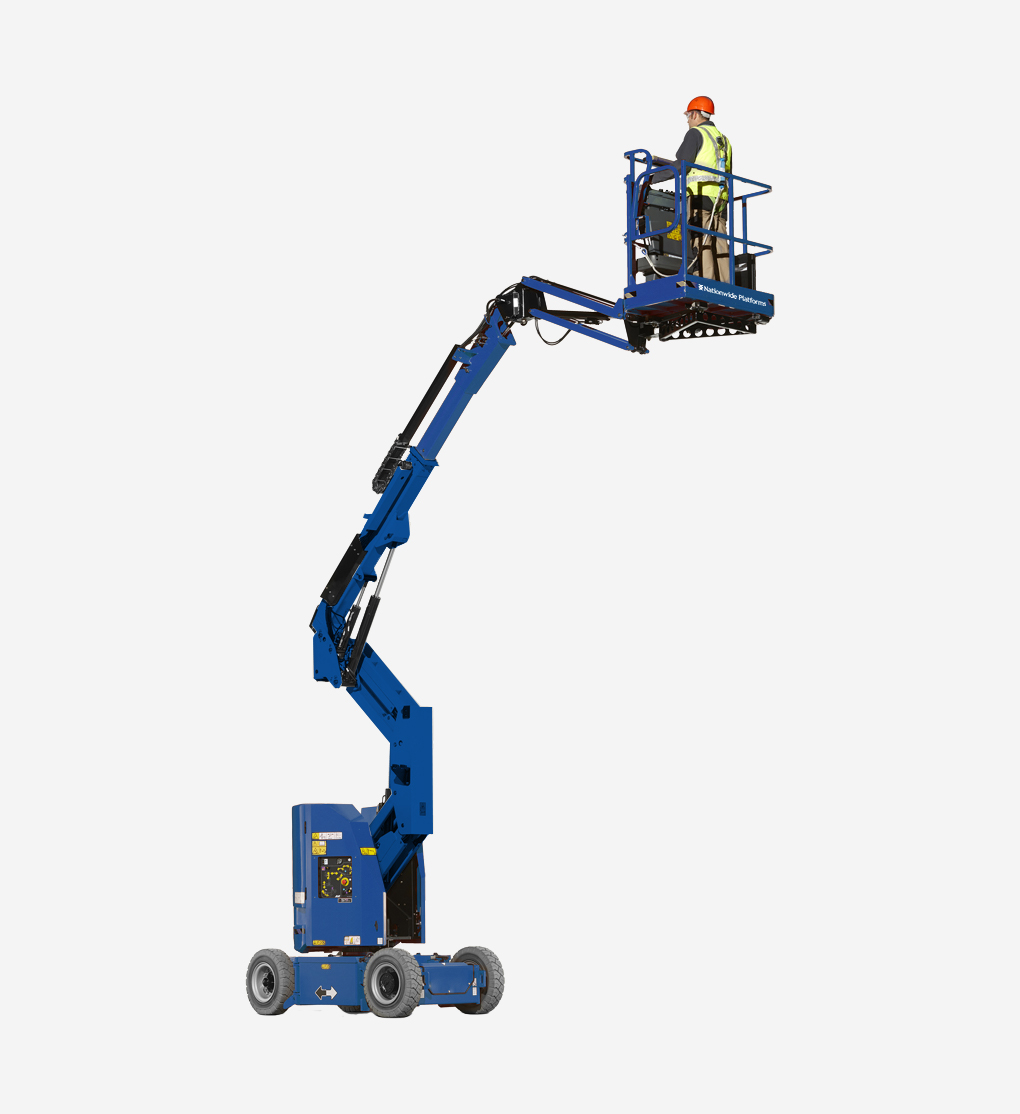

With a wide range of features and benefits, the JLG 30JP electric boom lift can be used for a wide range of tasks including warehousing, local authority work and maintenance. The articulating boom lift enables access above and over, with a working height of 11.14m and an outreach of 6.25m. With a safe working load of 227kg, the 30JP enables up to two operators plus tools. The 30JP articulated boom lift can be fitted with a range of innovations from our BlueSky range including Power to platform and SkySiren®.



Full specification

Working height	11.14m
Outreach	6.25m
Safe working load	227kg
Weight	6,990kg
Boom Type	Articulated
Platform height	9.14m
Closed width	1.22m
Closed height	N/A
Non-marking tyres	Yes
Indoor use	Yes
Outdoor use	Yes
Ground condition	Finished
Platform/deck size	1.22m x 0.76m
Closed length	5.74m
Rotation	140
Power	Electric
Manufacturer	JLG
